Friday, March 24, 2006

Long Distance WiFi



I live on a mountain.

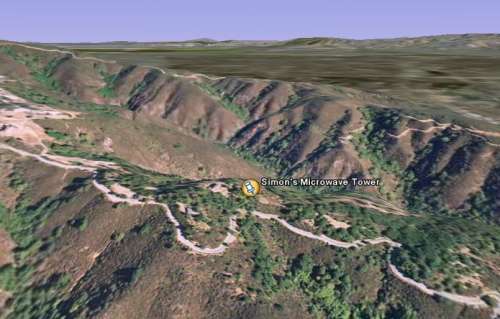

I get my high speed Internet by using a microwave link from a tower on the hill near the house to the top of a tall building in San Jose, a distance of about 11 miles.

Since that link provides me with much more bandwidth than I actually use, even when streaming video from my henhouse, I give free Internet access to those of my neighbors who don't have line-of-sight to San Jose. Some of the links are what we call "wires through the woods", but several are WiFi links, using directional antennas and Linksys WRT54G wireless routers.

Our longest link is 2.89 miles, to a house across a canyon from me, on another ridge to the east. But just for fun, I set up a dish aiming at distant Fremont, and put another dish on the lumber rack of my pickup truck and drove to a hill above that city and parked on the side of the road, aimed my dish towards home, and got a solid signal at a distance of a little over 26 miles as the crow flies. I was getting a nominal 5.5 megabits per second at that distance, which allowed me to get actual measured throughput of just under 3 megabits per second. Surfing the web was still plenty fast enough, and what delay I was seeing was the normal server delay. I could not really tell any difference, subjectively, from surfing at home.

I would have gone farther, but I had run out of road.

Back home, I drove to the top of the mountain, and aimed my dish around at various parts of Silicon Valley and beyond, and used the NetStumbler program to find access points. At one point, I was able to get a signal from a transmitter in Oakland, about 45 miles away.

I was feeling pretty proud of myself, with my truck mounted 24 dBi microwave dish and my 300 milliwatt WiFi card in the laptop computer.

Then I read about some guys who went just under 125 miles using 300 milliwatt cards in their laptops, feeding 10 and 12 foot parabolic dishes -- one towed on a trailer.

As I had found in my own experiments, the hard part is finding two places within line-of-sight of one another that are far enough away to make the project interesting. These guys set up one dish on a mountain in Nevada, and then drove into Utah.

To get farther than mountaintop to mountaintop, some Swedish folks put a WiFi unit in a balloon and sent it up to an altitude of over 18 miles, and received signals from it as far away as 195 miles away. They used a 6 watt amplifier, since a 12 foot parabolic dish is a little heavy for a weather balloon to lift, and somewhat hard to aim.

Years ago I used my amateur radio equipment to talk to astronauts in the Space Shuttle and International Space Station. There are amateur satellites in orbit that store and forward email to amateurs around the world. WiFi and satellites are already connected to provide Internet access to recreational vehicles. It seems to me it is only a matter of time before a low earth orbiting WiFi access point breaks all earthly records for distance.



7 Comments:

Blogger an0maly said...

Hey I'm really fascinated by your experiment. I had one question. When you said you pointed your dish toward oakland 45 miles away and picked up a transmitter did you mean you picked up a normal access point that someone was running or was this something you had set up yourself? And in your opinion would the internet connected have worked?

August 21, 2006 12:04 AM
Anonymous Anonymous said...

I drove there with a dish attached to the lumber rack of my pickup truck, and aimed the dish back at the one at home.

I was able to surf the web from my truck.

August 21, 2006 7:19 AM
Anonymous Anonymous said...

How far away can you pick up a normal access point (eg. linksys wifi router) using a directional antenna?

August 25, 2006 8:11 PM
Blogger Simon Quellen Field said...

A big dish can see them as far away as the curvature of the earth will allow.

August 29, 2006 11:43 AM
Anonymous Anonymous said...

What is the type of dish you mentioned and cow can I connect it to receive signal from my Linksys Antena. I am interested in trying this out. Pls give me details on how I can deploy this

February 06, 2007 8:06 AM
Anonymous Josh from Australia said...

I'm also interested in this for access to the office from my home in northern queensland australia. I have the same router in the office and use an IBM Lenovo laptop at home... will most likely purchase another router for home if you can suggest???

January 14, 2008 1:16 AM
Blogger Michael said...

This may not be impressive compared to your numbers, but I have a linksys router with custom firmware and 80 mw as oposed to 28 mw tx. I was able to go 980 ft without signal quality dropping below 82 percent. It would not go below that so I had to turn around and walk back home. Plus the computer didn't have the power to "talk" back so I would only be able to use it for stuff like udp broadcasts. TV shows maybe?

March 28, 2008 6:52 PM
